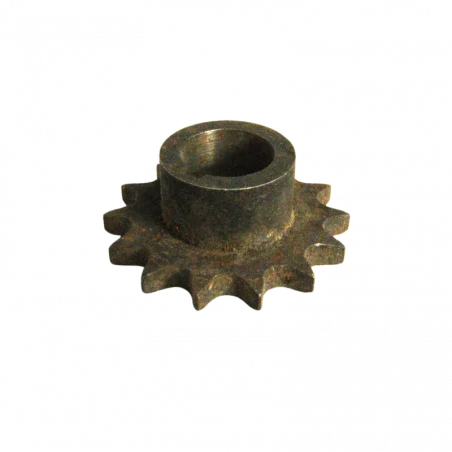

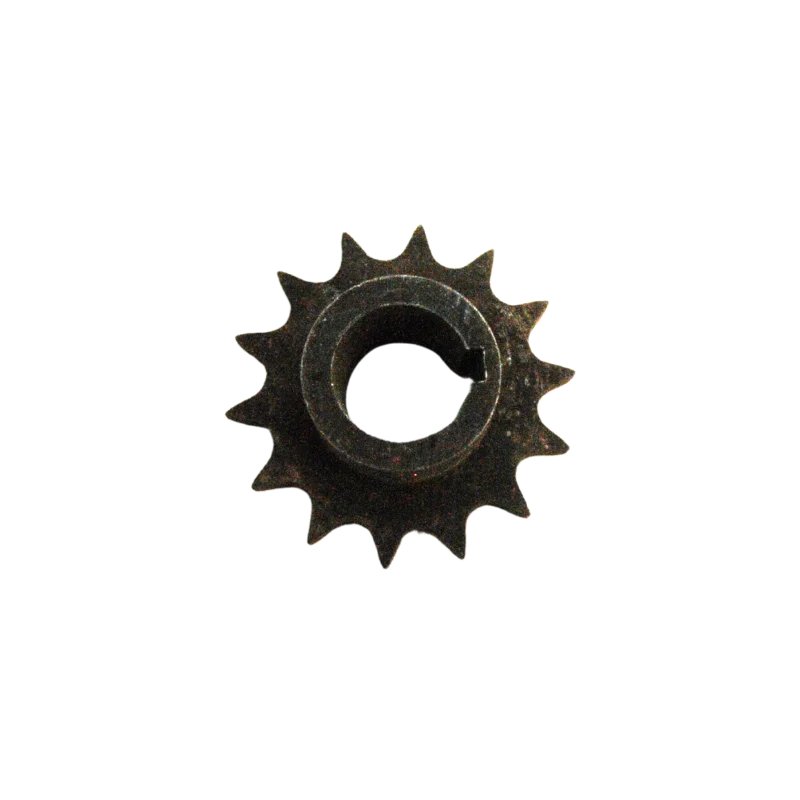

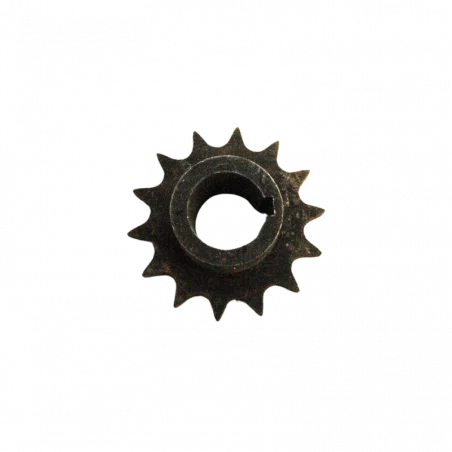

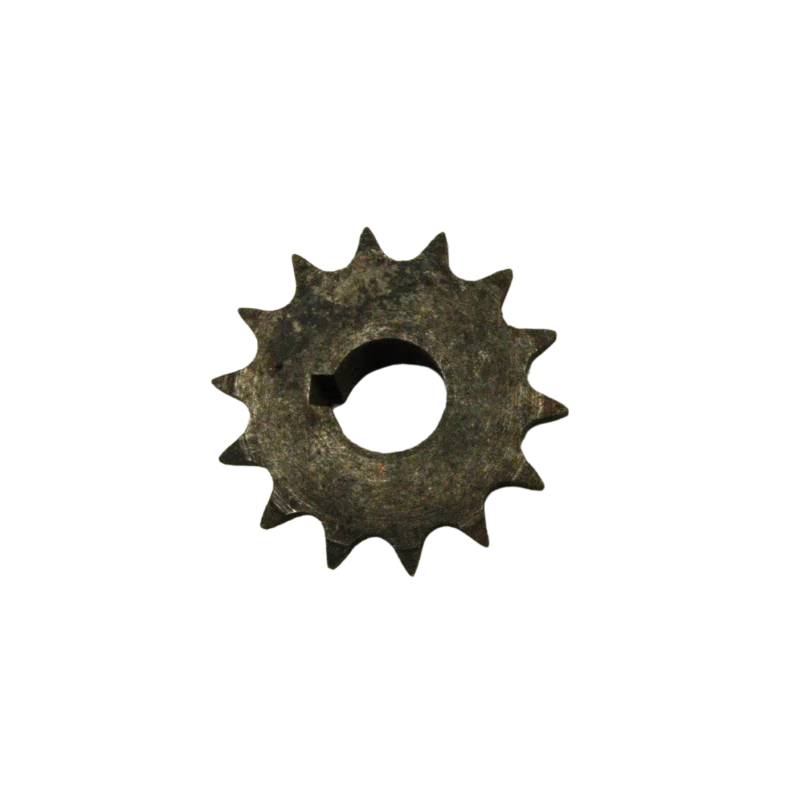

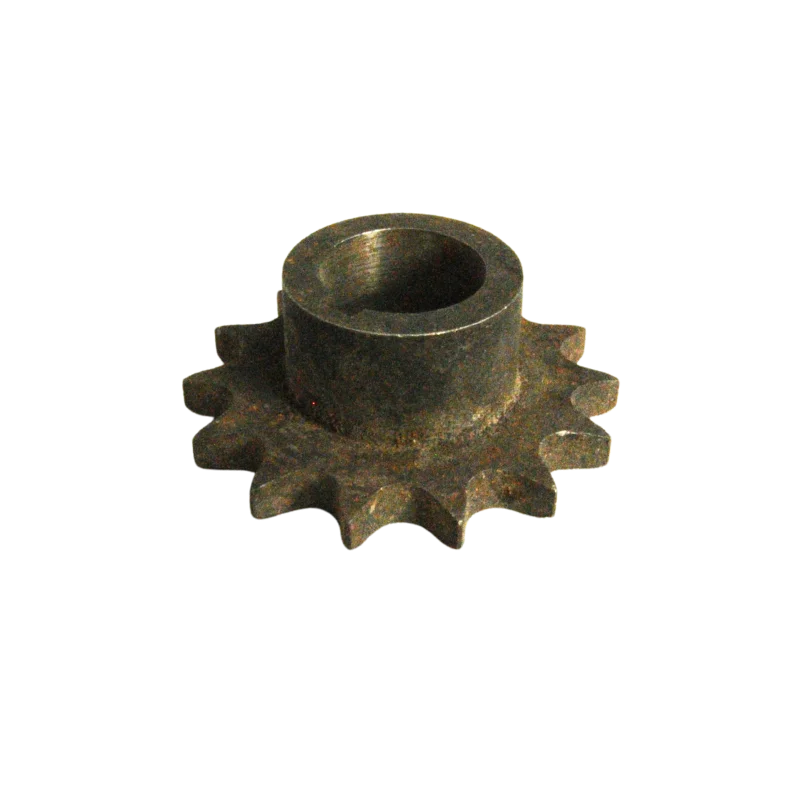

Gearbox output pinion - 16.8" conical Bore /15.2mm

    Gearbox output pinion - Conical Bore 16.8-15.2mm.

    Models fromorigin 's inventory (see photos).

    Dimensions: A: 16.8mm - G: 15.2mm - B: 24.7mm - C: 13mm.

    Number of teeth: 14 - D: 5.3mm - Chain pitch: 9.52

    Unit price. Very limited stock.

    Original part - Special Conditions:
    All original parts are sold as is, no exchange or return are accepted.

    French production

    Find outMore

    front We invite you to check all the dimensions of your model atorigin and to confirm your order at command. Items purchased at original parts cannot be exchanged or returned.

    Specifications:

    • A and G: ¤ Bores
    • B: ¤ Shoulder
    • C: Shoulder height
    • D: Tooth thickness

    See sprockets by brand motos, etc.
