gearbox output sprocket - 14.6/17 mm conical Bore

    gearbox output sprocket - conical Bore 14.6-17mm.

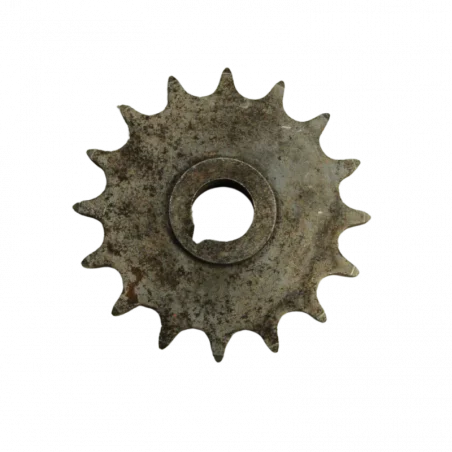

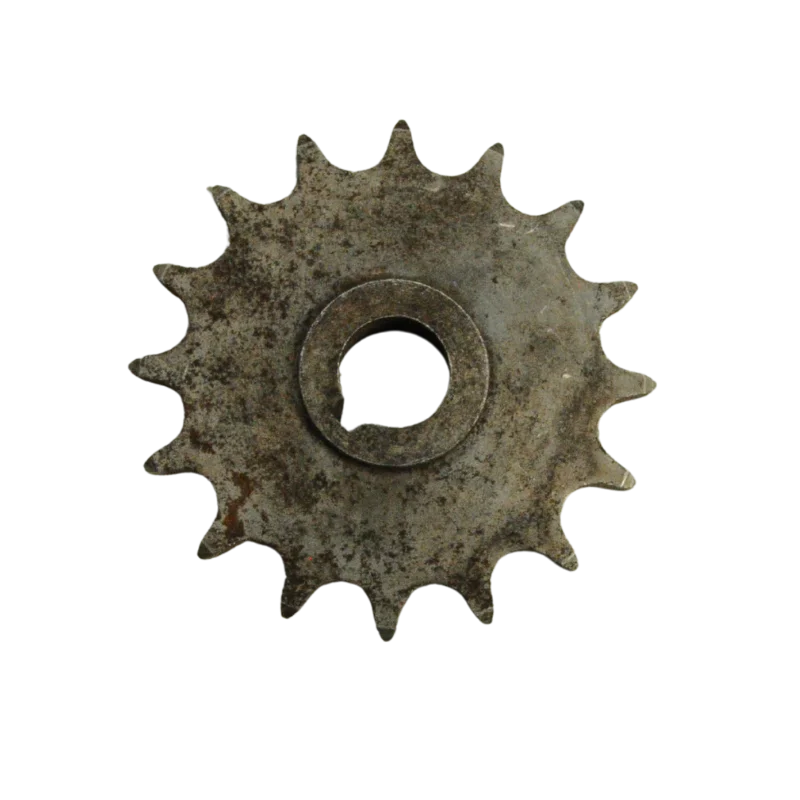

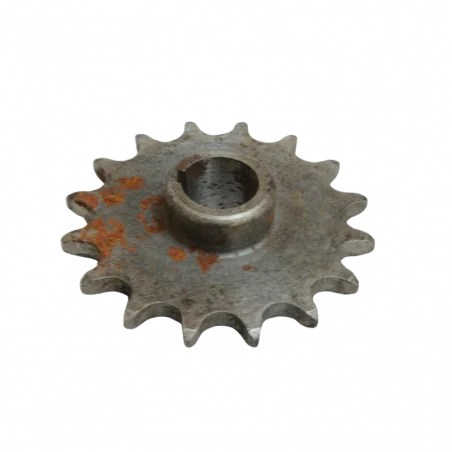

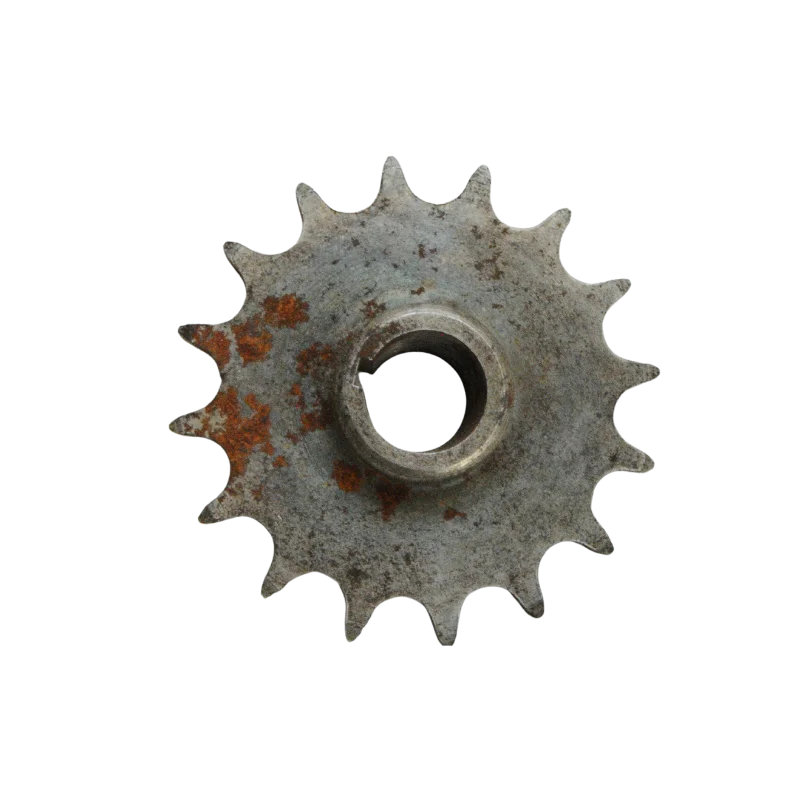

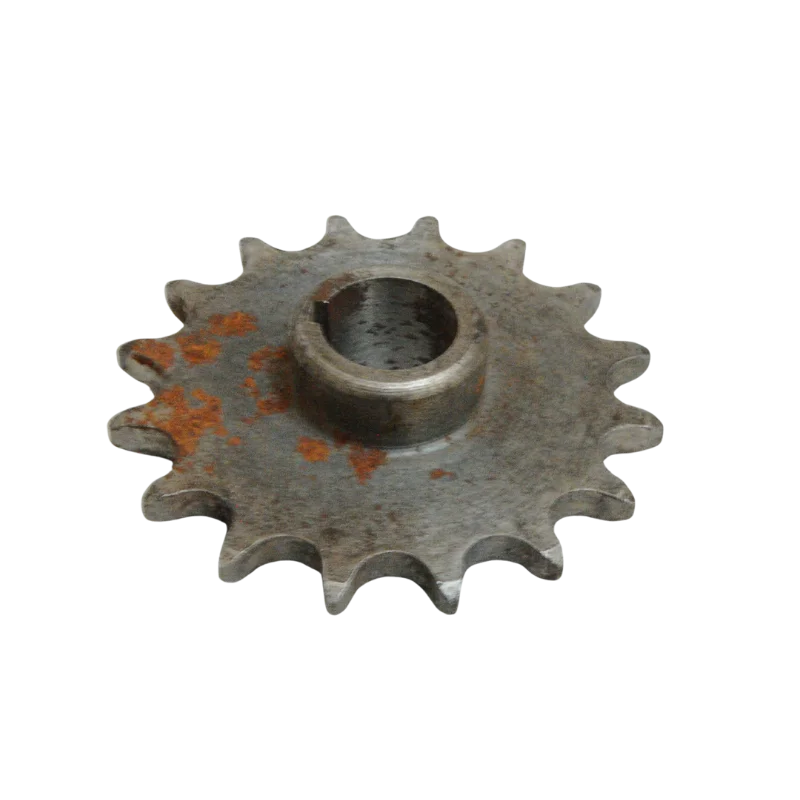

    Models fromorigin 's inventory (see photos).

    Dimensions: A: 14.6mm - G: 17mm.

    Shoulder on each side: B: 25mm - C: 10.2mm and B: 25.4mm - C: 2.1mm.

    Number of teeth: 16 - D: 4.9m - Chain pitch: 12.7

    Diameter Total outer diameter: approximately 70 mm.

    Price per unit. Very limited stock.

    Original part - Special Conditions:
    All original parts are sold as is, no exchange or return are accepted.

    French production

    Find outMore

    front We invite you to check all the dimensions of your model atorigin and to confirm your order at command. Items purchased at original parts cannot be exchanged or returned.

    Specifications:

    • A and G: ¤ Bores
    • B: ¤ Shoulder
    • C: Shoulder height
    • D: Tooth thickness
